Carver Fire .org



Rescue 1.jpg (3421 bytes)

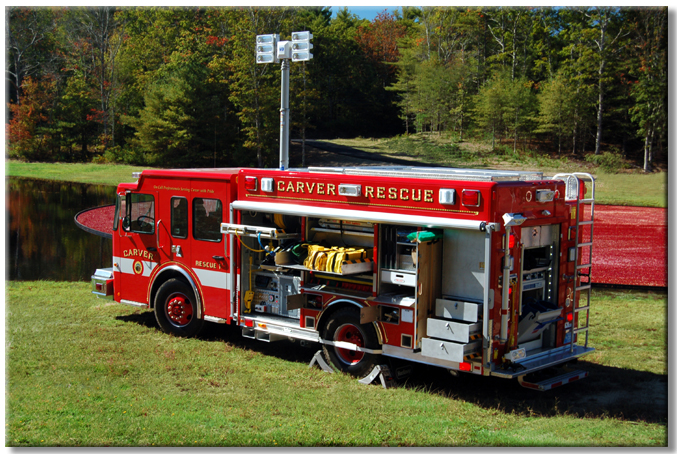

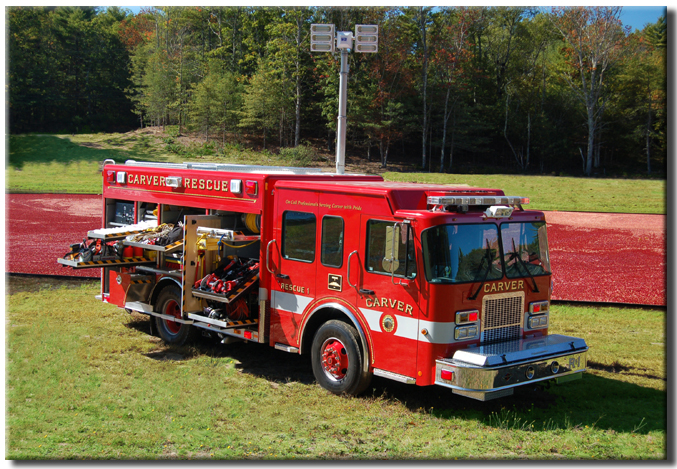

Carver Rescue 1 is a 2006 Hackney Emergency Vehicles Heavy Rescue on a 2006 Spartan Chassis.  It is powered by a 330 Cummins diesel motor with an Allison 6 speed automatic transmission.  A 158 inch wheel base, 50 degree cramp angle, on-spot tire chains and locking rear differential make the vehicle very maneuverable and capable of dealing with severe New England winters.  The cab is air conditioned and seats 4 firefighters.  The overall length is 30 feet 6 inches and it is 9 feet 8 inches high.  It has a complete LED emergency warning light package, 1000 watt fixed magnifier lights on all 4 sides of the truck, as well as 110 volt fluorescent and 12 volt LED compartment lighting.  An Onan 3 Phase 40 KW PTO driven generator provides electrical power to 4 - 200 foot electric rewind cord reels, and a 20 foot telescoping 5,400 watt light tower.  It also powers a Hurst Trimo hydraulic pump which feeds 3 - 100 foot pre-connected hydraulic reels.

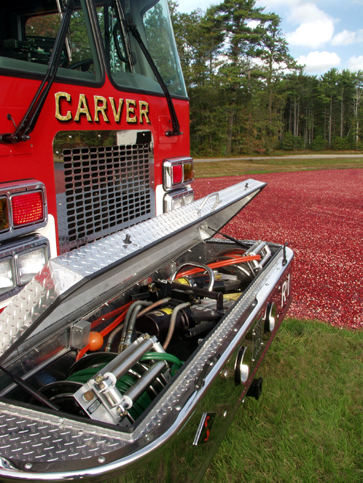

Front Bumper

  Hurst X-Tractor Cutter and Hurst ML-32 Spreader on 100 foot  pre-connected color coded hydraulic lines on electric rewind reels

 Fixed 1,000 watt 12 volt magnifier light over windshield

  Winch receiver in bumper





Road Side 1

  Vista Display unit, Remote radio control head, Wilburt light tower control, 3 Phase 40 KW Onan PTO generator controls, Air pressure regulator for air tools, Cascade refill valve, Master safety disconnect

 Roll Out Hurst Unit - Removable Hurst Electric Trimo Pump with 3 pre-connected hydraulic lines.  Two of the lines go to the front bumper compartment and one line goes to the tilt down ram tray.

 Cord Reels - 1 - 200 foot electric 240/120 volt cord reel with distribution box (Yellow), 1 Hurst 100 foot hydraulic pre-connected Ram line (Blue)

Tilt Down Ram Tray - One pre-connected Hurst T-41 telescoping Ram and one each Small, Medium and Large Hurst Rams

 Slide out Tray - 1 large hydraulic extension ram, Safety chains, Spare spreader tips, Rocker panel support brackets, assorted Hurst tool accessories

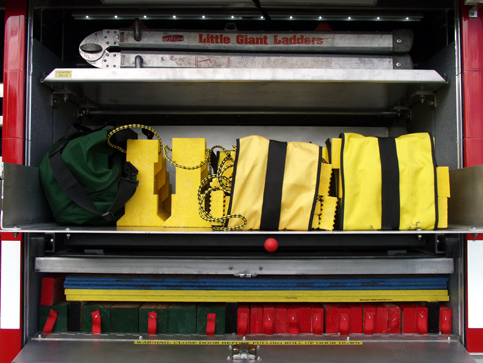

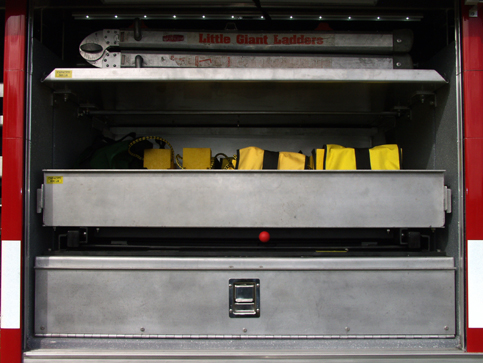

Road Side 2

 Flip down lid - 8 foot 2x4's, 8 foot 4x4's, 8 foot sheets of 1/2 inch and 3/4 inch plywood

 Roll Out Shelf - 36 Composite 4�x4�x18� Lincoln Logs, 12 inch composite cribbing, composite step chocks, assorted composite cribbing

  Fixed Shelf - Little Giant A frame ladder

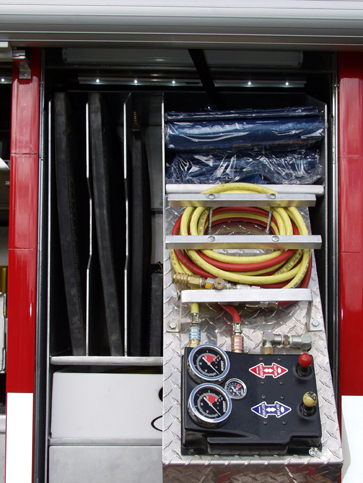

Road Side 3

  Small, medium and 2 large Hurst Air Bags, Metal Plates, Custom made Air Bag regulator, Come along tool, ratchet straps, and assorted poly tarps

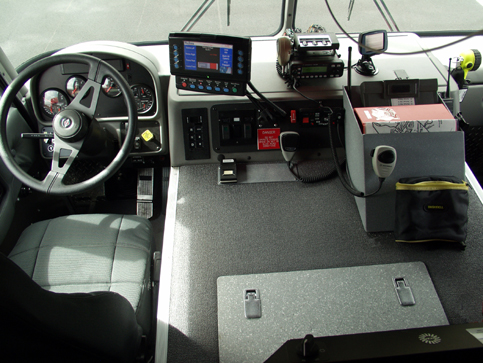

Interior

  Vista Control Panel, locking differential control lever, On-Spot tire chain switch, GPS Unit, UHF and low band radio�s, numerous hand lights, 3 SCBA Paks and spare protective clothing

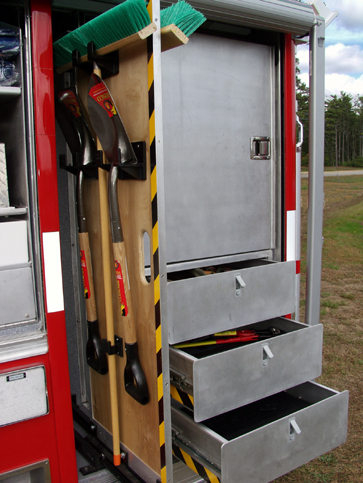

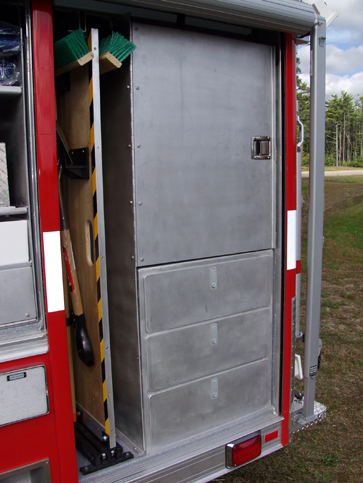

Road Side 4

  Roll Out Tool Board - Round & square point shovels, 2 brooms and bolt cutters

  Tool Drawers - Complete ratchet and socket set, Pry bars, Hammers, Wrenches Set, Allen wrenches, Drills, Bolt cutters, and numerous hand tools

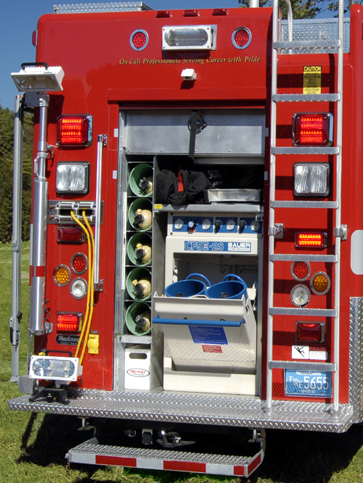

Rear

  Bauer CFS II - 2S two position fill station with 4 - 5000psi ASME Air Bottles, 5 Spare SCBA cylinders, drivers SCBA Pak, step ladder and assorted cascade tools

  1 Magnifier 1000 watt tripod light pre connected to a 200 foot electric reel, and 1 Magnifier 500 Watt portable light pre connected to a 200 foot electric reel

Fixed 1000 watt Magnifier and a back up camera

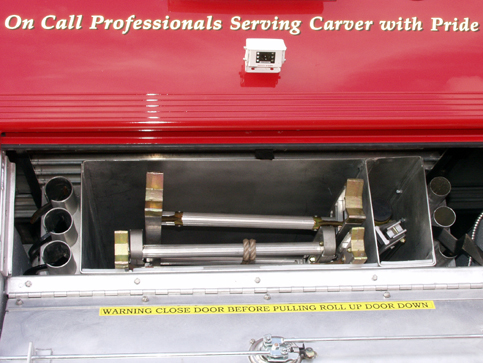

Ladder Storage

 Ladder Storage  -  24' and 14' ground ladders, 8' attic ladder, 3 assorted length pike poles and 1 Syosset roof hook

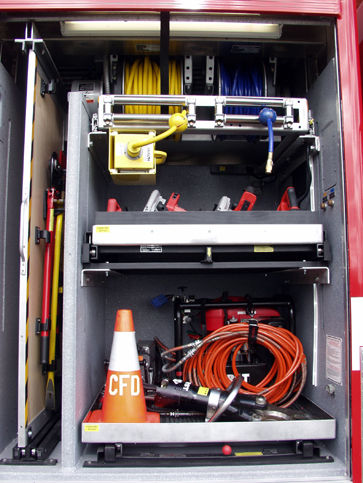

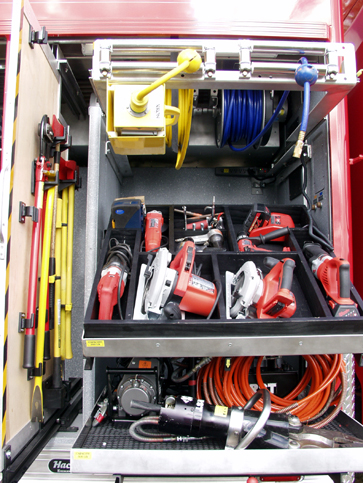

Curb Side 1

  Drop Down Shelf - Milwaukee V28 Lithium-Ion 28 volt cordless drill, sawzall and circular saw, assorted drill bits, corded circular saw, corded grinder, corded sawzall, air chisel, air grinder, spare 28 volt battery and charger

 Cord Reels - 1 - 200 foot pre-connected 240 volt electric cord feeding a 120 volt distribution box (yellow), 1- 200 foot air hose reel (blue)

  Slide out Shelf - Ramsey 9000# portable winch set up to mate with receivers on 4 sides of truck, portable Hurst 4 cycle power unit pre connected to a Hurst ML-16S Maverick combo tool

 Tool Board - Bolt cutters, sledge hammers, axes and pry bars

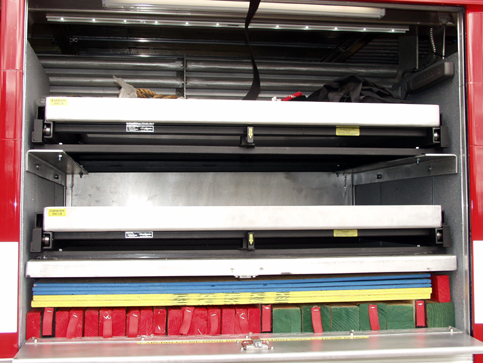

Curb Side 2

  Both tilt downs are for spare tools and rope

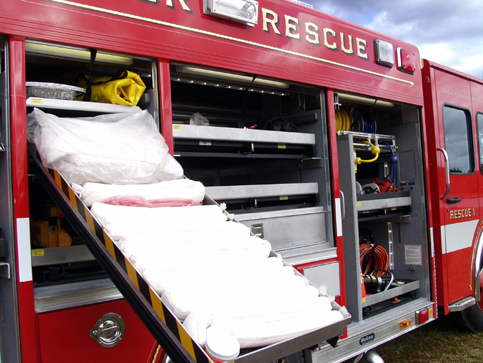

Curb Side 3a

  Hazmat Socks, Hazmat absorbent pads, Plug-n-Dike compound and Bio Bags, disposable catch pans (gobble gobble), and inflatable perimeter pool

Curb Side 3b and 3c

  Echo roof saw, 2 Echo chain Saws, K 12 Rescue Cutter,  Honda Model EM650 portable generator/light, fuel cans, assorted chain saw files

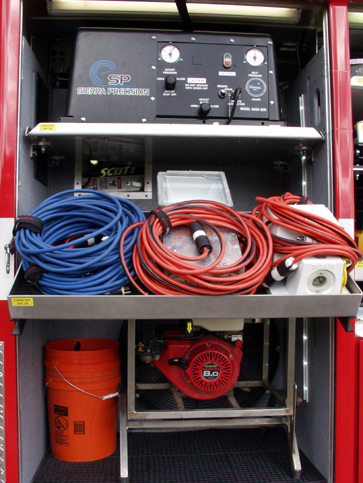

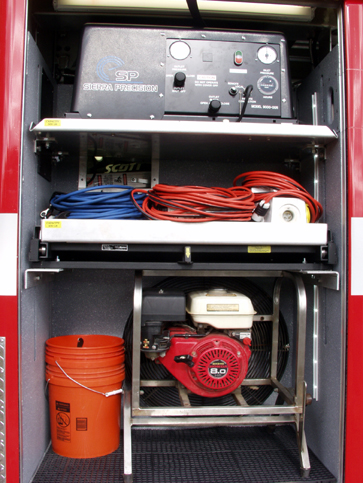

Curb Side 4

  PPV fan, SpeedyDry Bucket and scoop, 500 watt quartz lights, electric cords and adapters, Sierra Air Booster Pump for Cascade system

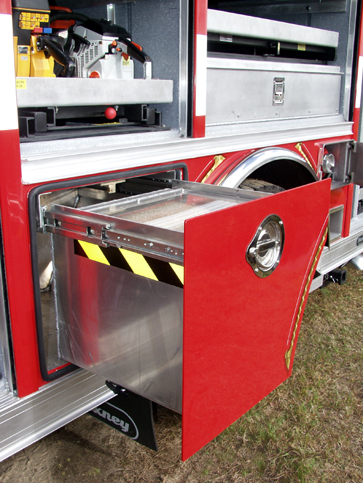

Speedy Dry Bin

  Holds 100 pounds of Speedy Dry with bottom dispenser



Roof

  Wilburt 20 foot telescoping light tower with 6 - 900 watt magnifiers.  3 large dunnage compartments containing a stokes basket, extra SpeedyDry, hazmat booms and pads.





Carver Rescue 1 is the product of hundreds of hours of hard work by an extremely dedicated Committee with representation from all 3 firefighting Company�s within the Department.  All were residents and taxpayers of the Town of Carver.  Collectively,  they represented over 175 years of emergency service to the people of Carver.  The charge given to the Committee was to prepare a specification for a replacement Rescue Truck that would not only serve the community for the next quarter of a century, but also do it with enhanced efficiency and safety.  Carver has a history of developing apparatus with common sense practical innovation that performs with simplicity and allows the firefighter to do their jobs quickly and safely.
